罗茨鼓风机
浩然三叶罗茨鼓风机是一种容积式风机，其压力可以根据用户的要求在允许的范围内加以调节，在机壳内部设置有两组互朝相反方向回转的叶轮，在叶轮与叶轮，及叶轮与壳体间仅留极小缝隙的状态下回转。当叶轮经过吸入端时

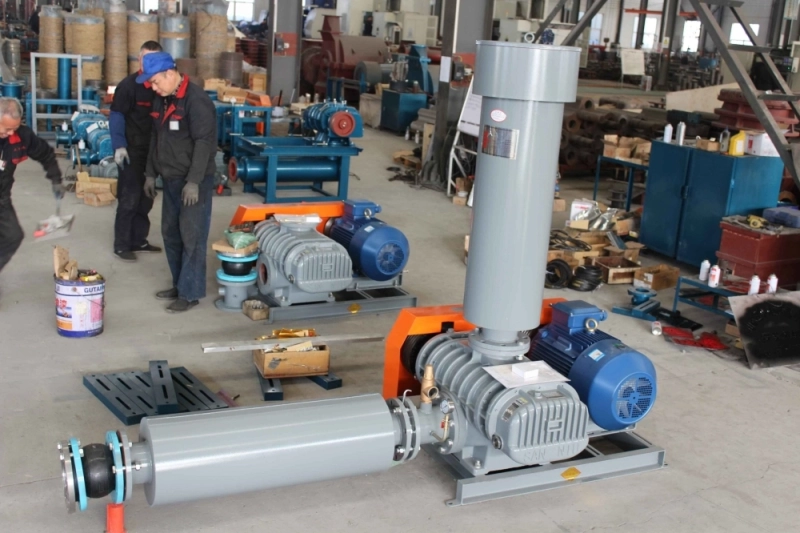

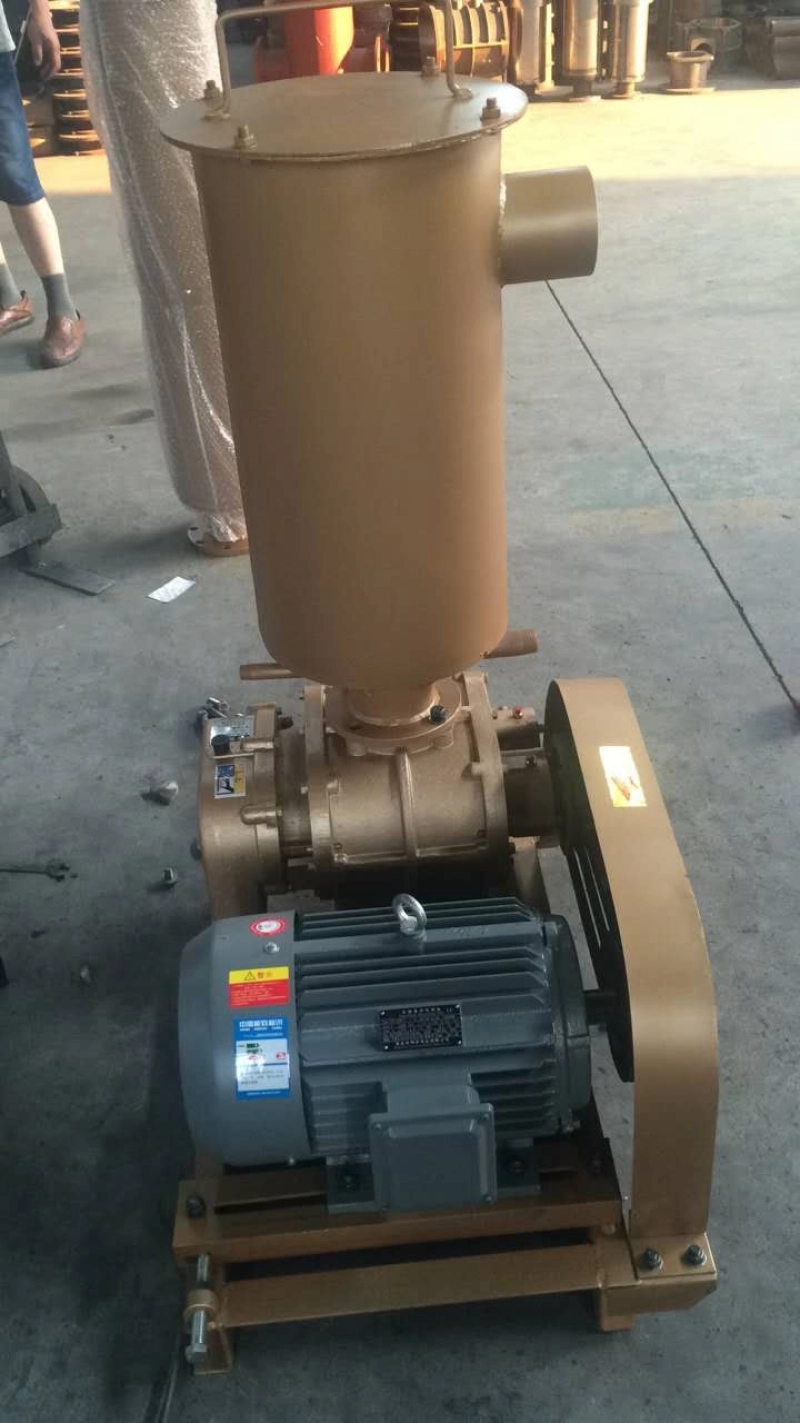

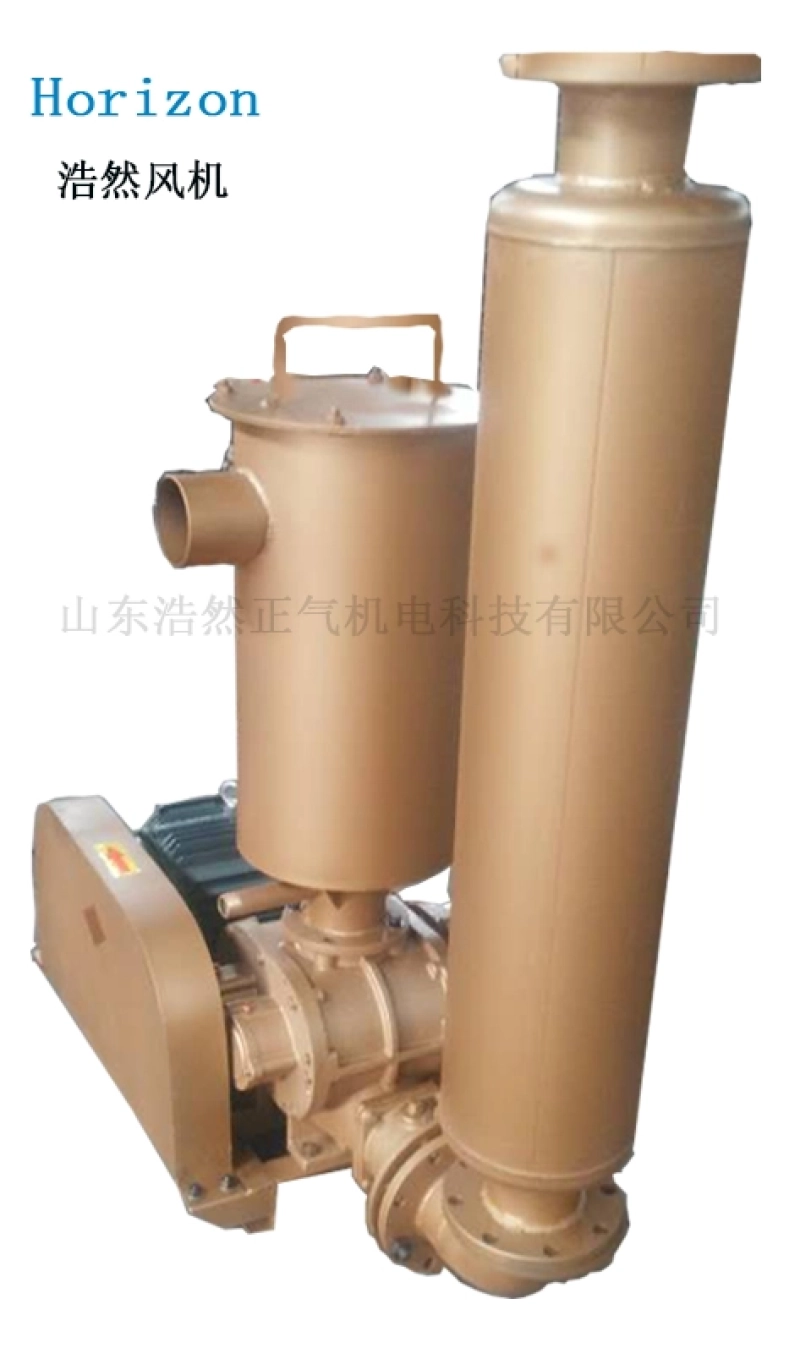

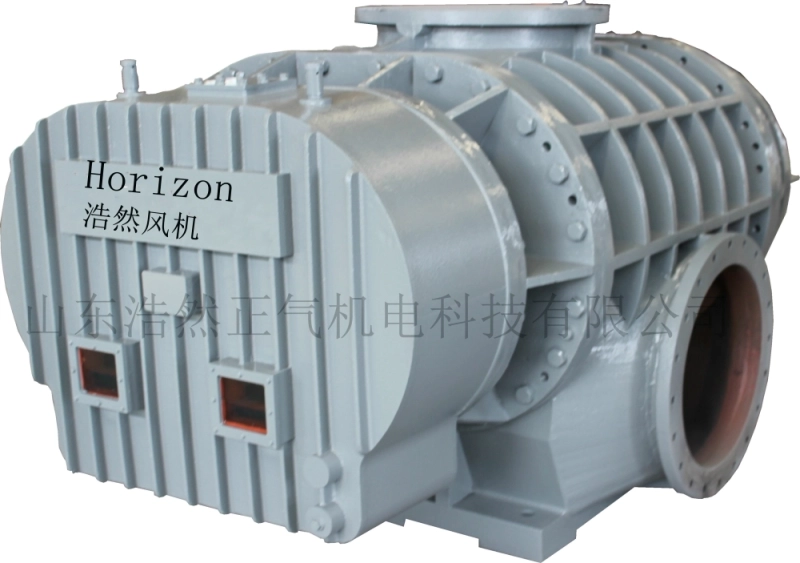

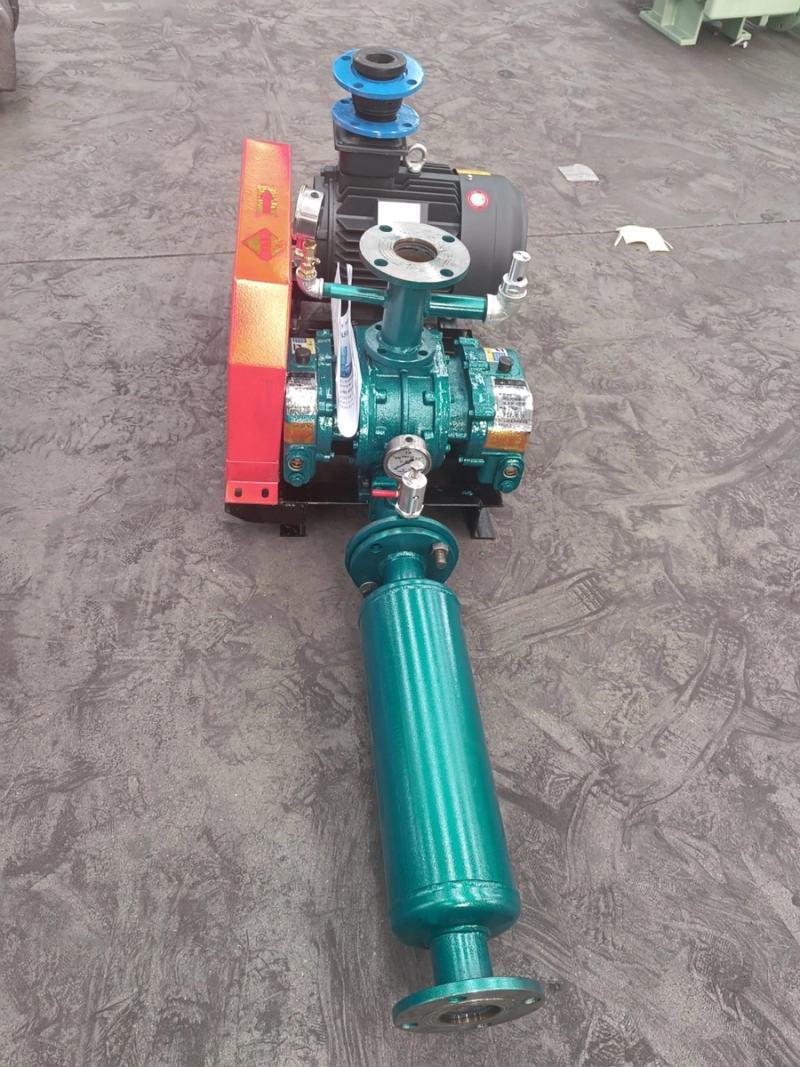

Product Display
Product Display
The Haoran Three Leaf Roots blower is a volumetric fan whose pressure can be adjusted within the allowable range according to user requirements. There are two sets of impellers rotating in opposite directions inside the casing, which rotate with only a small gap left between the impeller and the casing. When the impeller passes through the suction end, a certain amount of air is captured between the impeller and the shell. As the impeller rotates, the air moves laterally, and the pressure gradually increases before being sent to the outlet end.
Product features:
1、 The air volume and pressure range are large.
Caliber: 40-300mm (1.5 "-12")
Air volume: 0.36-160m3/min (12-5700CFM)
Pressure: One stage model can reach 8000mmAq (0.8kgf/cm2)
2、 The discharged gas does not contain oil stains.
3、 Computer dynamic balance correction, low vibration and low noise.
4、 The air volume is stable, and the impact of pressure changes on the air volume is small.
5、 Special impeller equipment, high efficiency and energy saving.
6、 Simple and sturdy construction with no faults.
7、 Using first level grinding gears, high precision, long service life, and low noise.
8、 Strict quality management and standardized products.
9、 The impeller adopts the latest six axis machining method of the gantry planer, which is completed in one go, making replacement convenient and has higher precision.
如蒙洽询请指示下列各项：
For further details, please fulfill the chart below.
客户：
Customer
工程名称：
Name of project
电话：
Telephone
承办人员：
Undertaker
工程地点：
Address of project
传真：
Fax
* | 用途 Usage | □ | 压缩用 Compression | □ | 真空用 Vacuum | |||||
* | 当地状况 Local condition | 海拔m Elevation | 最高相对湿度% Max relative humidity | |||||||
当地大气压力(MPa) Local atmospheric pressure | 最高气温(°C) Max air temperature | |||||||||
* | 气体性质 Gas character | 名称 Name | 温度(°C) Temperature | |||||||
成份 Constituents | 各组分比例 Ratio of constituent | |||||||||
风机参数 Blower's parameter | * | 风量(m3/min) Capacity | 口径(mm) Diameter | |||||||
* | 风压(mmAq) Pressure | 转速(r/min) Speed | ||||||||
电机参数 Motor's parameter | 型式 Type | 电压(V) Voltage | ||||||||
功率(kW) Power | 频率(Hz) Frequency | |||||||||
极数 Pole | 其它 Others | |||||||||
安装位置 Location | □ | 室内安装 Indoor install | □ | 遮雨棚式室外安装 Camping outdoor install | □ | 其它 Others | ||||
* | 传动方式 Driving mode | □ | 皮带传动(标准型) Belt-driven(Standard) | □ | 直联传动 Direct drive | |||||
其它要求 Other requirement | ||||||||||
备注：1.以上资料请尽可能完整填写。
2.项目前加注“＊”者，请务必填写。
Notes: 1. Please fill in the parameter lists as complete as possible.
2. The item with“ * ”must be filled.
contact information:
WeChat: loveme20101129
Phone:+86 15553130638
Website: https://haoran.book.dzncm.com/
