新款气动刀

SUMMARY

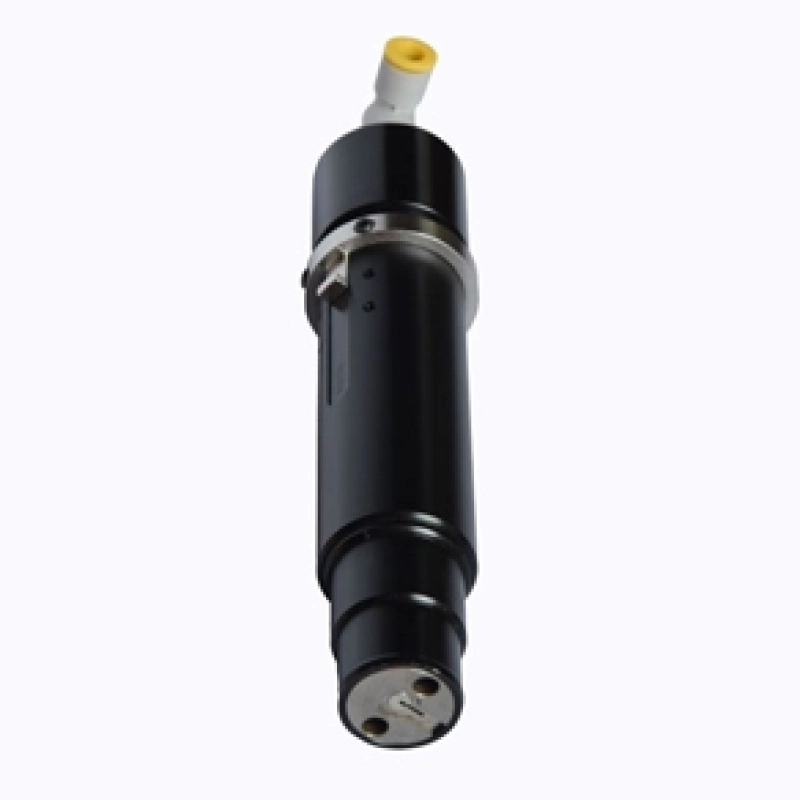

The new pneumatic knife can process advertising KT boards, foam boards, ABS plastic, corrugated plastic boards, corrugated paper, cardboard, gray cardboard, silk ring foot pads, carpets, sealing rings, carbon fiber prepregs, etc. The basic principle of pneumatic knives is to cut materials by compressing gas to drive the blade to move back and forth at an ultra-high speed, which is particularly suitable for cutting and shaping medium density materials. Paired with different blades, it can achieve processing of different materials.

Instructions for use and debugging

(1) Installation and disassembly of blade cap

Align the guide rivet on the blade cap with the installation groove of the vibration blade handle, and press the blade cap into the handle with a slight force. When you hear a click, the blade cap is installed in place.

Check if the upward and downward movement of the blade and hat barrel is smooth.

When pulling out the blade cap, keep the blade cap straight with the handle and pay attention to safety.

(2) Blade installation

Loosen the M4 top screw and insert the blade in the direction shown in the diagram; Insert the blade to the bottom (approximately 13mm in length); Lock the M4 top screw and rotate the shaft at the end of the motor by hand to ensure that the blade can slide easily.

(3) Blade clip disassembly

Method 1: Use a screwdriver to move the blade clamp back and forth. Once the blade clamp is loose, it can be removed (recommended for use).

Method 2: First, use a blade clamp to hold the waste blade, then use pliers to hold the blade clamp and pull it out.

(4) Installation height adjustment

Unscrew the adjustment screws, two screws on each side for a total of four, move up and down to the appropriate position, and tighten the screws.

(5) Oil injection maintenance

Unscrew the top thread of the oil injection hole and drip clean sewing machine oil or other liquid lubricating oil.

After the machine is finished working, it is necessary to use an air gun to clean the small debris stuck on the blade to prevent the debris from entering the working area of the blade and causing the blade to get stuck.

If the blade is not used for a long time, oil should be injected into the oil hole and the blade should be left empty for 5 minutes to fully produce an oil film on the sliding part of the blade and reduce air corrosion.

Drip a few drops of clean pneumatic tool lubricating oil into the air hole during work, allowing the lubricating oil to fully lubricate the sliding block.

matters needing attention

Before inflating, confirm that the air duct is securely connected.

2. Before inflating, confirm that the blade is locked tightly.

Before applying air, confirm that the air pressure is below 0.8Mpa.

4. Non professionals are not allowed to disassemble the blade.

5. When installing the blade and blade cap, pay attention to safety.

6. Timely oil injection for maintenance.

7. The working air source should be kept clean and free of dirt and moisture.
